With Force Feeding System Ring Die Sheep Cattle Feed Pellet Mill Machine

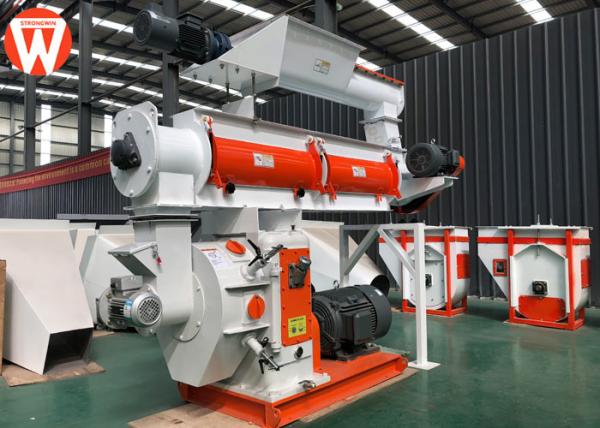

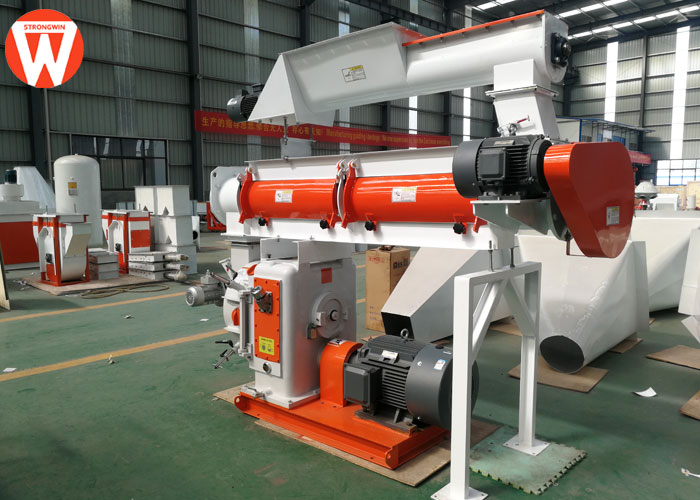

Brief Introduction of SZLH320 forced feeding feed pellet mill machine
The feed pellet machine is one of the key machines in feed pellet production line. It’s die mold is made of stainless steel or alloy steel for your choice. It has the characteristics of low cost, reasonable structure, compact layout, reliable performance and easy maintenance.
If customers materials have grass, the feed pellet machine with force feeding device.
Features of SZLH320 forced feeding feed pellet mill machine
- America CPM model,high precision gear driven .
- Stainless steel material,frequency feeding speed control.
- Siemens Motor,Switzerland SKF bearing
- High efficiency,low noise working
Application
This machine can single use or apply to feed pellet line, widely used in farm owners or Feed factory. Can make kinds of feed pellets, like chicken, bird, turkey, pigeon, rabbit, pig, sheep, cow, cattle, horse etc.
Technical Parameters of SZLH320 forced feeding feed pellet mill machine
| Items | SZLH320 |
| Production Capacity | 2-4t/h |
| Power of Main Motor | 37kw |
| Power of Feeding Screw Motor | 0.55kw |
| Power of conditioner Motor | 3kw |
| Diameter of ring die | Φ320mm |
| Speed of ring die(r/min) | 320r/min |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | 350r/min |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ140mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.1-0.4Mpa |
| Steam consumption(t/h) | ≥0.3 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2235*1010*2445mm |
| Machine weight | 2100kg |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
