150KG/H Fish Pellet Making Machine Mini Catfish Grass Carp 0.9-15mm Feeding

Henan Strongwin Machinery Equipment Co., Ltd.
Contact Now

150KG/H Fish Pellet Making Machine Mini Catfish Grass Carp 0.9-15mm Feeding

Brand Name : Strongwin

Model Number : DGP60-C

Certification : CE,ISO,SGS

Place of Origin : China

MOQ : one set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 sets per year

Delivery Time : 5-7 working days after deposit

Packaging Details : Wooden Case or In Container

Product name : 150KG/H Mini Catfish Grass Carp Fish Feed Extruder Machine In Peru

Capacity : 150KG/H

Motor power : 15kw

Feeding power : 0.4kw

Feed Size : 0.9-15mm

Packing diemension : 1470*1120*840mm

Contact Now

150KG/H Mini Catfish Grass Carp Fish Feed Extruder Machine In Peru

Technical Features of Fish Feed Extruder Machine

1. This fish feed machine adopts the auto-controlling speed feeding tool to produce the feed material evenly.

2. Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.

3. High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest.

4. The cutting knife adopts the frequency controlling speed in order to change the material size.

5. The floating time can be controlled by the puffing degree adjustment.

6. Auto-temperature control system makes the temperature controlling more direct viewing and the parameter more precise.

150KG/H Fish Pellet Making Machine Mini Catfish Grass Carp 0.9-15mm Feeding

Advantages of Dry Type Fish Feed Extruder Machine

1. This fish food extruder is widely used for producing floating feed pellets of all kinds of aquatic animal.

2. Advanced technology and humanized design ensures easy operation and reliable performance.

3. High efficiency, low power consumption

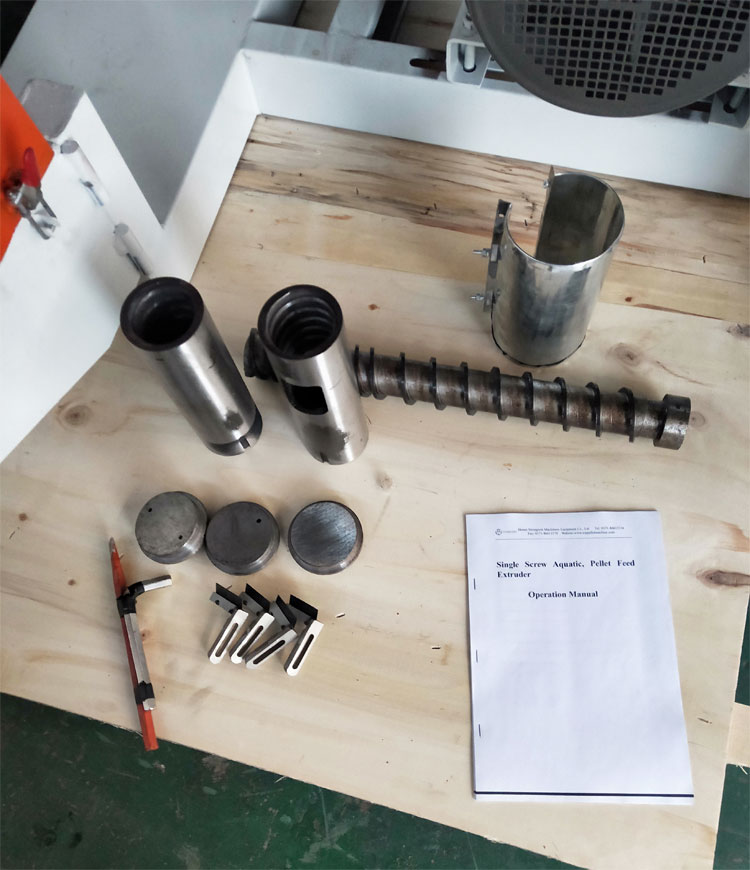

4. Screw sleeve of this small fish food extruder adopts enchase alloy steel strip structure, which guarantees long service life.

5. Different moulds can be chosen to make pellets with different diameters and shapes.

6. Feed pellets dia. Is 0.9-15mm.

150KG/H Fish Pellet Making Machine Mini Catfish Grass Carp 0.9-15mm Feeding

Technical parameters of Dry Type Fish Feed Extruder machine

Model Capacity Main power Feeding power Screw diameter Cutting power
t/h kw kw mm kw
DGP40-C 0.03-0.04 3.0*2 0.4 φ40 0.4
single-phase
DGP40-C 0.03-0.04 5.5 0.4 φ40 0.4
three-phase
DGP50-C 0.06-0.08 11 0.4 φ40 0.4
DGP60-C 0.12-0.15 15 0.4 φ60 0.4
DGP70-B 0.18-0.2 18.5 0.4 φ70 0.4
DGP80-B 0.2-0.25 22 0.6 φ80 0.6
DGP90-B 0.30-0.35 37 0.6 φ90 0.8
DGP120-B 0.5-0.6 55 1.1 φ120 2.2
DGP135-B 0.7-0.8 75 1.1 φ133 2.2

150KG/H Fish Pellet Making Machine Mini Catfish Grass Carp 0.9-15mm Feeding
